External Cutting >DWLN >DWLNL3225P08

External Cutting

DWLN


DWLNL3225P08

Product Information

  • New double clamp type.
  • Small insert series.
  • Economical negative insert.
  • Holds inserts securely.
  • Excellent cutting edge tolerance.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M

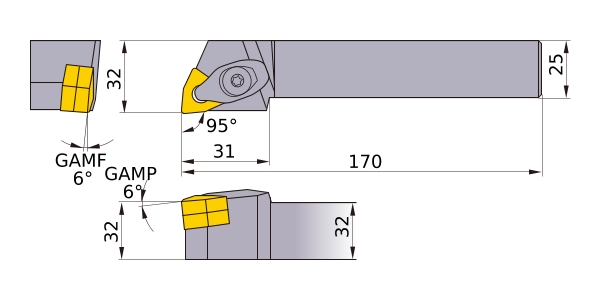

B 25
KAPR 95°
LF 170
LH 31
WF 32
H 32
HF 32
Peripheral effective cutting edge count: ZEFP 1
Insert Number WN__0804
2D Model (DXF)
CAD data name Download
DWLNL3225P08
