External Cutting >MWLN >MWLNL2020K08

External Cutting

MWLN


MWLNL2020K08

Product Information

  • High rigidity due to double clamp structure.
  • Simple insert exchange.
  • Economical negative insert.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M

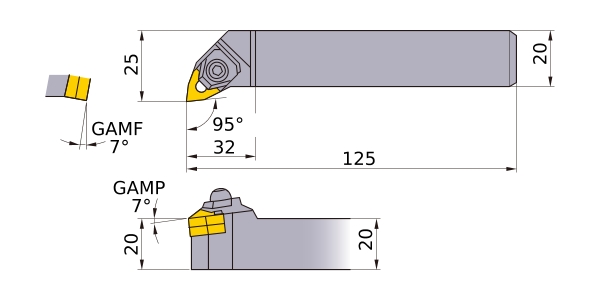

B 20
KAPR 95°
LF 125
LH 32
WF 25
H 20
HF 20
Peripheral effective cutting edge count: ZEFP 1
Insert Number WN__0804
2D Model (DXF)
CAD data name Download
MWLNL2020K08
CAD
