External Cutting >PVPN >PVPNL2020K16

External Cutting

PVPN


PVPNL2020K16

Product Information

  • Suitable for recessing.
  • Pin lock type
  • 35°rhombic shape insert.

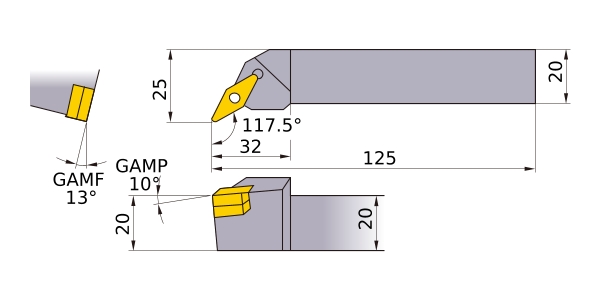

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M
B 20
KAPR 117.5°
LF 125
LH 32
WF 25
H 20
HF 20
Peripheral effective cutting edge count: ZEFP 1
Insert Number VN__1604
2D Model (DXF)
CAD data name Download
PVPNL2020K16
CAD
