External Cutting >SDJC-SM >SDJCL1010K11-SM

External Cutting

SDJC-SM


SDJCL1010K11-SM

Product Information

  • For gang type tool posts.
  • High accuracy ISO insert
  • Screw-on type.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M

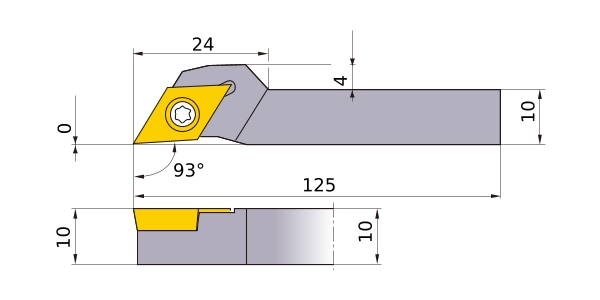

B 10
KAPR 93°
LF 125
LH 24
HBKW 4
H 10
HF 10
WF2 0
Peripheral effective cutting edge count: ZEFP 1
Insert Number DC__11T3
2D Model (DXF)
CAD data name Download
SDJCL1010K11-SM
CAD
