External Cutting >SRGC >SRGCL1616H08

External Cutting

SRGC


SRGCL1616H08

Product Information

  • Screw-on type
  • 7°positive insert.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M

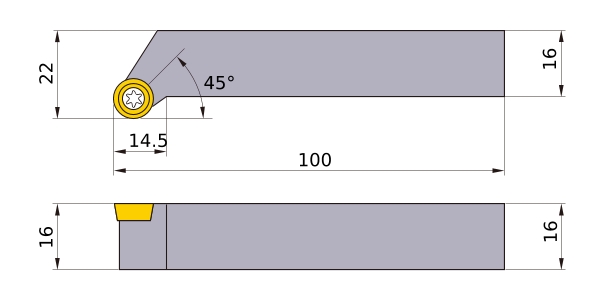

B 16
LF 100
LH 14.5
WF 22
H 16
HF 16
Peripheral effective cutting edge count: ZEFP 1
Insert Number RC__0803
2D Model (DXF)
CAD data name Download
SRGCL1616H08
