External Cutting >SVJC >SVJCR1010E11

External Cutting

SVJC


SVJCR1010E11

Product Information

  • Screw-on type
  • 7°positive insert.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

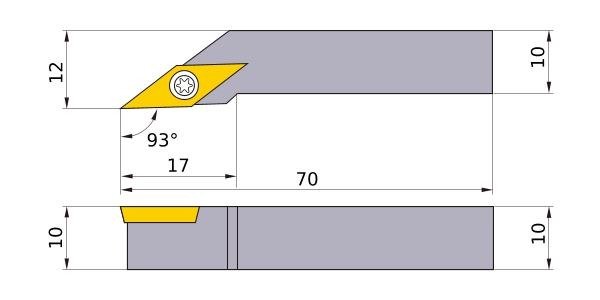

B 10
KAPR 93°
LF 70
LH 17
WF 12
H 10
HF 10
Peripheral effective cutting edge count: ZEFP 1
Insert Number VC__1103
