External Cutting >SVVB-SM >SVVBR1616M11-SM

External Cutting

SVVB-SM


SVVBR1616M11-SM

Product Information

  • For gang type tool posts.
  • High accuracy ISO insert
  • Screw-on type.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI SVVBR1616M11-SM
Hand R
Stock
Unit of Length M

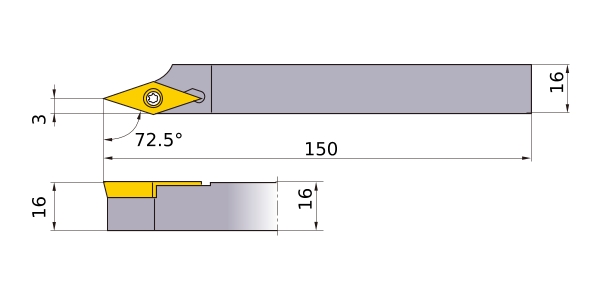

B 16
KAPR 72.5°
LF 150
H 16
HF 16
WF2 3
Peripheral effective cutting edge count: ZEFP 1
Insert Number VB__1103
2D Model (DXF)
CAD data name Download
SVVBR1616M11-SM
