External Cutting >SH >SH25M-FSDUCL11

External Cutting

SH


SH25M-FSDUCL11

Product Information

  • Also availale for turning with a CNC lathe sub spindle.
  • More Tools can be made available by attaching sleeve holder tools with round shanks to the sleeve holder for solid tools and boring bars.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI SHX16MX-SDUCL3
Hand L
Stock
Unit of Length M

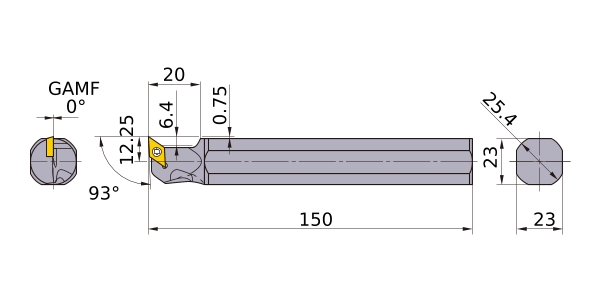

DCON 25.4
KAPR 93°
LF 150
LH 20
CDX 6.4
WF 12.25
H 23
WF2 0.75
Peripheral effective cutting edge count: ZEFP 1
Insert Number DC__11T3
2D Model (DXF)
CAD data name Download
SH25M-FSDUCL11
