External Cutting >DVPN >DVPNL2020K16

External Cutting

DVPN


DVPNL2020K16

Product Information

  • New double clamp type.
  • Small insert series.
  • Economical negative insert.
  • Holds inserts securely.
  • Excellent cutting edge tolerance.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M

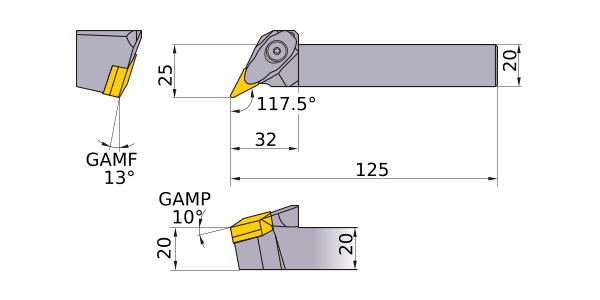

B 20
KAPR 117.5°
LF 125
LH 32
WF 25
H 20
HF 20
Peripheral effective cutting edge count: ZEFP 1
Insert Number VN__1604
