External Cutting >SXZC >SXZCL2525M15

External Cutting

SXZC


SXZCL2525M15

Product Information

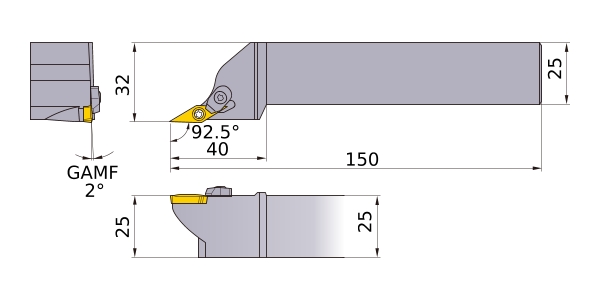

  • 25°rhombic shape insert allows back turning to be carried out up to 60°.
  • Maximum chip control through unique geometry.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M
B 25
KAPR 92.5°
LF 150
LH 40
WF 32
H 25
HF 25
Peripheral effective cutting edge count: ZEFP 1
Insert Number XC__1503
