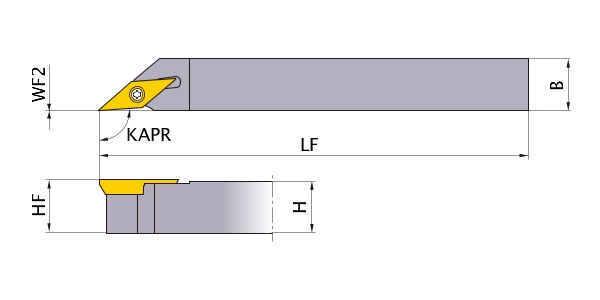

  • The 35 degree rhombic insert with 11 degree positive rake angle demonstrates excellent cutting performance for recessing and profiling small work pieces.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type1 [Expand]

  1
Order Number Type CAD Type of Coolant Hand Name of Grade Grade Stock
SVLPR1010K08-SM Type1 CAD R
SVLPR1010K11-SM Type1 CAD R
SVLPR1212M08-SM Type1 CAD R
SVLPR1212M11-SM Type1 CAD R
SVLPR1616M11-SM Type1 CAD R
SVLPL1010K08-SM Type1 CAD L
SVLPL1010K11-SM Type1 CAD L
SVLPL1212M08-SM Type1 CAD L
SVLPL1212M11-SM Type1 CAD L
SVLPL1616M11-SM Type1 CAD L
Insert Number H1 H B L1 L L24 FLGT LF CBDP OAL LPR L2 LH L19 LU H2 HF HBH F1 WF BS D1 IC DMIN CUTDIA DAXX DC DC1 DC2 BD BD1 BD2 BD3 BD4 BD5 D2 DCX D4 DCON D5 DN DCSFMS D8 DAH DAH1 DAH2 DCCB CNT D9 L3 LBB CDX L20 LDRED L15 LCF L7 LCCB L8 L9 HBKW LS W1 KWW S1 WF2 S4 S Z2 PDY PDX ap APMX HTB DCN CDI DCINX BDX CWX LBX RR GAMF GAMO LAMS ALF FHA KRINS STA WT R PRFRAD RE RE1 RE2 RE3 ld BHTA BHTA1 BHTA2 BHTA3 BHTA4 BHTA5 SIG SIG1 SIG2 LTA LBYD KWL Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Face effective cutting edge count: ZEFF Effective Cutting Edge Breaker Use body Modular Blade DBC DBC1 DBC2 DBC3 DCONWS DCONMS KAPR KAPR1 KAPR2 LB LB1 LB2 LB3 LB4 LB5 LE LE1 LE2 LE3 TX1 TX2 TX3
VP__0802 10 10 125 10 0 1   95°
VP__1103 10 10 125 10 0 1   95°
VP__0802 12 12 150 12 0 1   95°
VP__1103 12 12 150 12 0 1   95°
VP__1103 16 16 150 16 0 1   95°
VP__0802 10 10 125 10 0 1   95°
VP__1103 10 10 125 10 0 1   95°
VP__0802 12 12 150 12 0 1   95°
VP__1103 12 12 150 12 0 1   95°
VP__1103 16 16 150 16 0 1   95°
  1

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
