External Cutting >SVJC-SM >SVJCL1010JX11-SM

External Cutting

SVJC-SM


SVJCL1010JX11-SM

Product Information

  • For gang type tool posts.
  • High accuracy ISO insert
  • Screw-on type.

The actual product may differ from the displayed image.

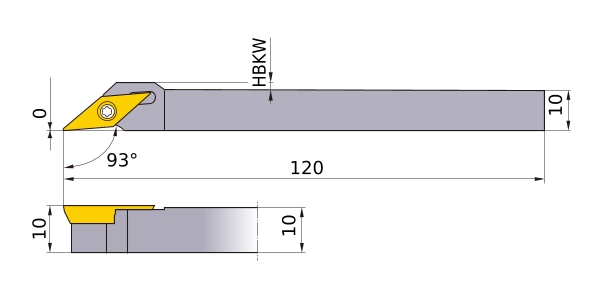

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI SVJCL1010JX11-SM
Hand L
Stock
Unit of Length M
B 10
KAPR 93°
LF 120
H 10
HF 10
WF2 0
Peripheral effective cutting edge count: ZEFP 1
Insert Number VC__1103
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition

  • Turning Inserts

  • Spare Parts
