Face Cutter >BRP >BRP6N-080A06R

Face Cutter

BRP6


BRP6N-080A06R

Product Information

  • Multi functional milling.
  • Round shape insert gives strong cutting edge.
  • 11°positive insert.
  • Suitable for roughing of moulds and dies.

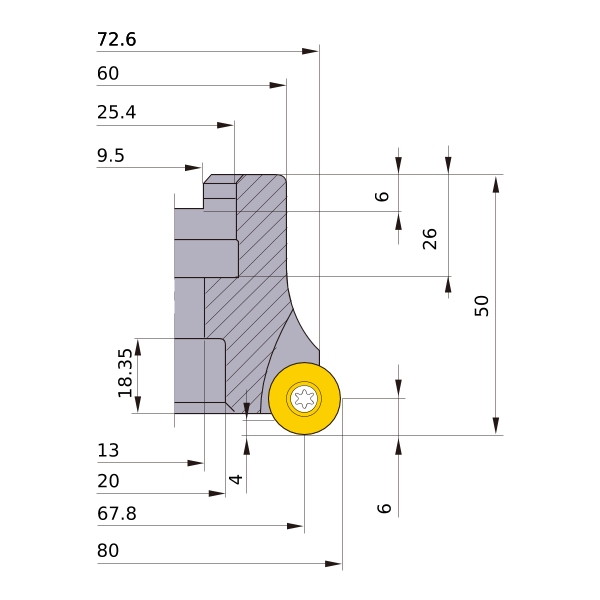

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
AZ 4
DC 67.8
DCX 80
DCON 25.4
BD 72.6
DCSFMS 60
DAH 13
DCCB 20
L8 6
LF 50
CBDP 26
LCCB 18.35
KWW 9.5
APMX 6
GAMP 0°
GAMF 0°
WT 1.2
Peripheral effective cutting edge count: ZEFP 6
