Face Cutter >BRP >BRP8N-100B07R

Face Cutter

BRP8


BRP8N-100B07R

Product Information

  • Multi functional milling.
  • Round shape insert gives strong cutting edge.
  • 11°positive insert.
  • Suitable for roughing of moulds and dies.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock

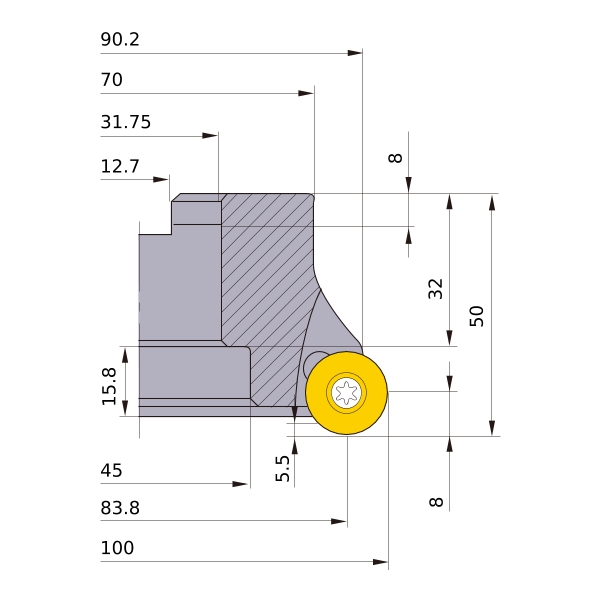

Unit of Length M
AZ 5.5
DC 83.8
DCX 100
DCON 31.75
BD 90.2
DCSFMS 70
DCCB 45
L8 8
LF 50
CBDP 32
LCCB 15.8
KWW 12.7
APMX 8
GAMP 0°
GAMF 0°
WT 1.6
Peripheral effective cutting edge count: ZEFP 7
