Face Cutter >ASX445_MM >ASX445-080A04R

Face Cutter

ASX445_MM
（GENERAL CUTTING）

ASX445-080A04R

Product Information

  • Precise but inexpensive molded type 20° positive insert.
  • Screw-on type.
  • A wide range of chip breakers.
  • High rigidity due to employment of a carbide shim.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

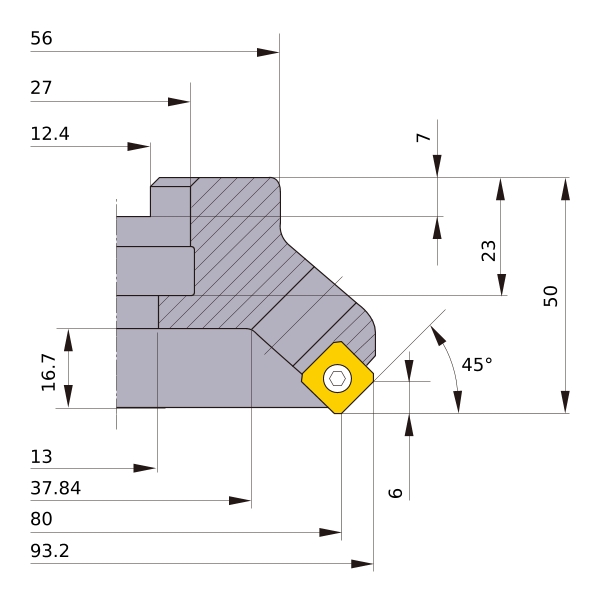

DC 80
DCX 93.2
DCON 27
DCSFMS 56
DAH 13
DCCB 37.84
KAPR 45°
L8 7
LF 50
CBDP 23
LCCB 16.7
KWW 12.4
APMX 6
GAMP +20°
GAMF -10°
WT 1
Peripheral effective cutting edge count: ZEFP 4
RPMX 14000
2D Model (DXF)
CAD data name Download
ASX445-080A04R
