Face Cutter >ASX445_MM >ASX445-125B08R

Face Cutter

ASX445_MM
（GENERAL CUTTING）

ASX445-125B08R

Product Information

  • Precise but inexpensive molded type 20° positive insert.
  • Screw-on type.
  • A wide range of chip breakers.
  • High rigidity due to employment of a carbide shim.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock

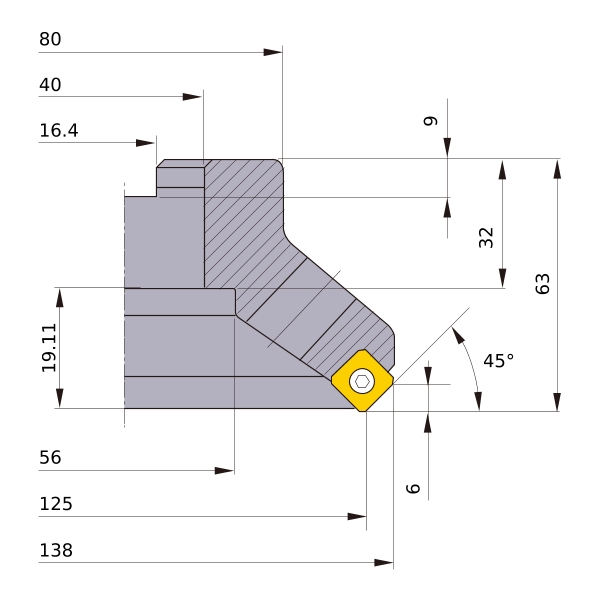

Unit of Length M
DC 125
DCX 138
DCON 40
DCSFMS 80
DCCB 56
KAPR 45°
L8 9
LF 63
CBDP 32
LCCB 19.11
KWW 16.4
APMX 6
GAMP +23°
GAMF -10°
WT 2.3
Peripheral effective cutting edge count: ZEFP 8
RPMX 12000
