Face Cutter > ASX400_MM

Face Cutter

ASX400_MM
（GENERAL CUTTING）

  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.

  • High rigidity holder.
  • Economical due to the use of 4 cutting edges.
  • Low resistance due to the 3D designed of the curved cutting edge.
  • Curved cutting edge and high rigidity holder

The actual product may differ from the displayed image.

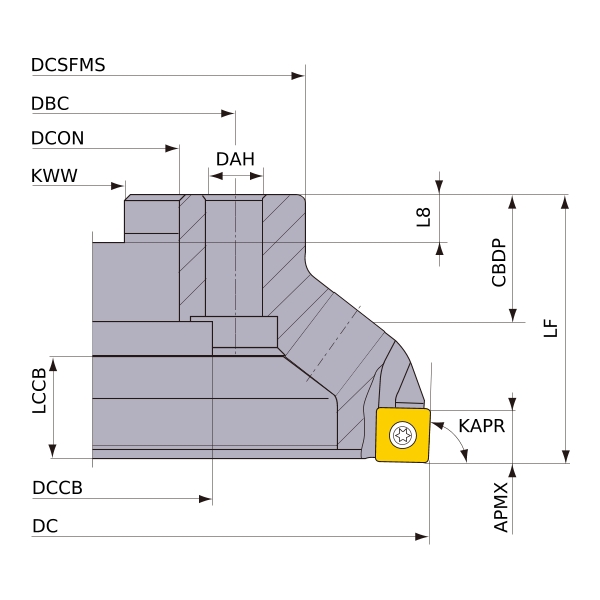

For details, please check the dimensions below.

Type1 [Expand]

Type2 [Expand]

Type3 [Expand]

Type4 [Expand]

  1 2
Order Number Type CAD Type of Coolant Hand Name of Grade Grade Stock
ASX400-050A03R Type1 CAD R
ASX400-050A04R Type1 CAD R
ASX400-050A05R Type1 CAD R
ASX400-063A04R Type1 CAD R
ASX400-063A05R Type1 CAD R
ASX400-063A06R Type1 CAD R
ASX400-080B04R Type2 CAD R
ASX400-080B06R Type2 CAD R
ASX400-080B08R Type2 CAD R
ASX400-100B05R Type2 CAD R
ASX400-100B07R Type2 CAD R
ASX400-100B10R Type2 CAD R
ASX400-125B06R Type2 CAD R
ASX400-125B08R Type2 CAD R
ASX400-125B12R Type2 CAD R
ASX400-160C08R Type3 CAD R
ASX400-160C12R Type3 CAD R
ASX400-160C15R Type3 CAD R
ASX400-200C10R Type4 CAD R
ASX400-200C16R Type4 CAD R
Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Face effective cutting edge count: ZEFF Effective Cutting Edge D1 IC DMIN CUTDIA DAXX DC DC1 DC2 D2 DCX L1 L L24 FLGT LF OAL LPR D9 DCON L7 CBDP LCCB D8 DAH DAH1 DAH2 DCCB CNT W1 KWW L8 WT ap APMX HTB DCN CDI DCINX BDX CWX LBX D4 D5 DN DCSFMS BD BD1 BD2 BD3 BD4 BD5 B L2 LH L19 LU L3 LBB CDX L20 LDRED L15 LCF L9 HBKW LS H1 H H2 HF HBH F1 WF BS S1 WF2 S4 S Z2 PDY PDX RR GAMF GAMO LAMS ALF FHA KRINS STA R PRFRAD RE RE1 RE2 RE3 ld BHTA BHTA1 BHTA2 BHTA3 BHTA4 BHTA5 SIG SIG1 SIG2 LTA LBYD KWL Breaker Use body Modular Blade Insert Number DBC DBC1 DBC2 DBC3 DCONWS DCONMS KAPR KAPR1 KAPR2 LB LB1 LB2 LB3 LB4 LB5 LE LE1 LE2 LE3 TX1 TX2 TX3
3 50 40 22 20 11 17 10.4 6.3 0.3 10 41 -11°   90°
4 50 40 22 20 11 17 10.4 6.3 0.3 10 41 -11°   90°
5 50 40 22 20 11 17 10.4 6.3 0.3 10 41 -11°   90°
4 63 40 22 20 11 17 10.4 6.3 0.5 10 50 -10°   90°
5 63 40 22 20 11 17 10.4 6.3 0.5 10 50 -10°   90°
6 63 40 22 20 11 17 10.4 6.3 0.5 10 50 -10°   90°
4 80 50 27 29 38 12.4 7 0.9 10 60 -10°   90°
6 80 50 27 29 38 12.4 7 0.9 10 60 -10°   90°
8 80 50 27 29 38 12.4 7 0.9 10 60 -10°   90°
5 100 50 32 32 45 14.4 8 1.4 10 70 -9°   90°
7 100 50 32 32 45 14.4 8 1.4 10 70 -9°   90°
10 100 50 32 32 45 14.4 8 1.4 10 70 -9°   90°
6 125 63 40 32 60 16.4 9 2.3 10 80 -9°   90°
8 125 63 40 32 60 16.4 9 2.2 10 80 -9°   90°
12 125 63 40 32 60 16.4 9 2.1 10 80 -9°   90°
8 160 63 40 29 14 56 16.4 9 3.6 10 100 -9°   66.7 90°
12 160 63 40 29 14 56 16.4 9 3.5 10 100 -9°   66.7 90°
15 160 63 40 29 14 56 16.4 9 3.4 10 100 -9°   66.7 90°
10 200 63 60 32 18 135 25.7 14.22 6.3 10 160 -9°   101.6 90°
16 200 63 60 32 18 135 25.7 14.22 6.2 10 160 -9°   101.6 90°
  1 2

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition
