Face Cutter >VOX400_MM >VOX400-160C10R

Face Cutter

VOX400_MM
（STRONG EDGE TYPE FOR CAST IRON）

VOX400-160C10R

Product Information

  • Economical due to the use of 8 cutting edges.
  • Vertical inserts with high　strength cutting edge.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock

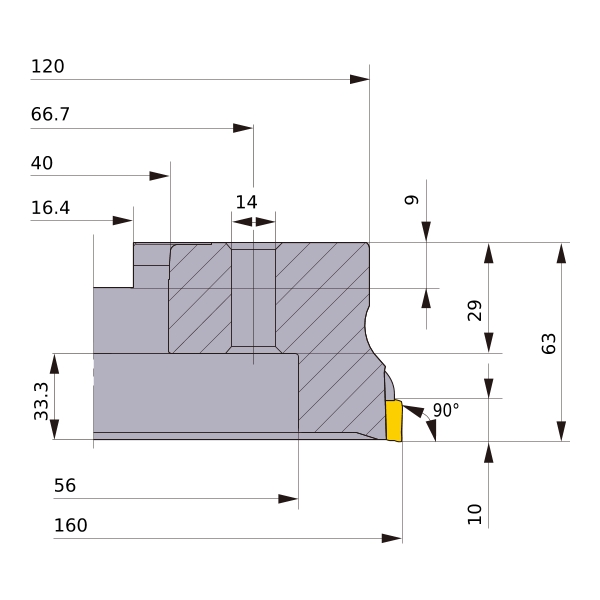

Unit of Length M
DC 160
DCON 40
DCSFMS 120
DAH 14
DCCB 56
KAPR 90°
L8 9
LF 63
CBDP 29
LCCB 33.3
KWW 16.4
APMX 10
GAMP -6°
GAMF -18°
WT 5.4
DBC 66.7
Peripheral effective cutting edge count: ZEFP 10
