Face Cutter >APX4000_MM >APX4000-100A08RA

Face Cutter

APX4000_MM


APX4000-100A08RA

Product Information

  • High accuracy, high quality vertical wall.
  • Air coolant through.

The actual product may differ from the displayed image.

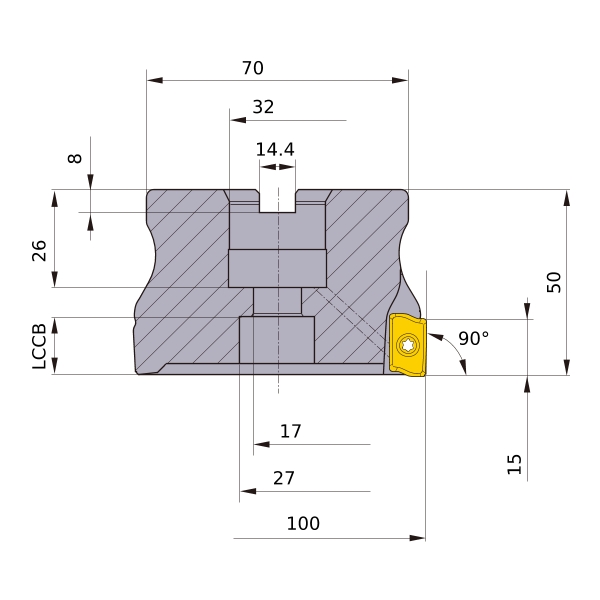

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DC 100
DCON 32
DCSFMS 70
DAH 17
DCCB 27
KAPR 90°
RMPX 1.5
L8 8
LF 50
CBDP 26
KWW 14.4
APMX 15
GAMP +22°
GAMF +26°
WT 2.1
Peripheral effective cutting edge count: ZEFP 8
RPMX 8100
2D Model (DXF)
CAD data name Download
APX4000-100A08RA
