Face Cutter >AJX_MM >AJX12-080A06R

Face Cutter

AJX12
（MULTI FUNCTIONAL MILLING）

AJX12-080A06R

Product Information

  • High rigidity due to double clamp structure.
  • Suitable for high feed cutting.
  • Special insert design with the use of 3 cutting edges.
  • Standardization of coolant holes.

The actual product may differ from the displayed image.

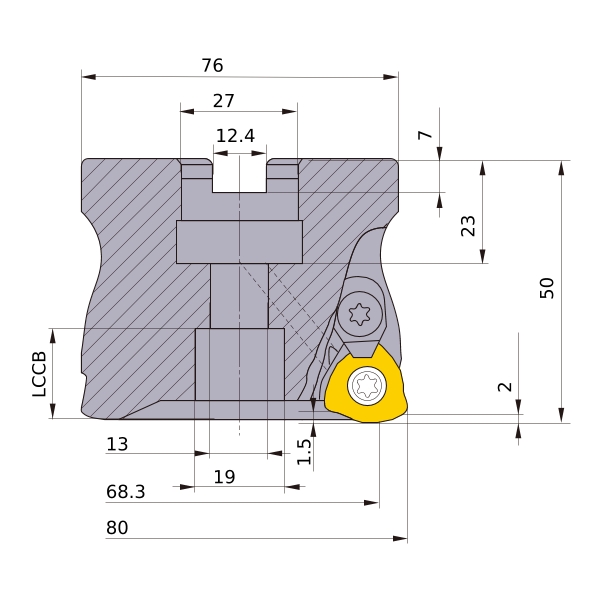

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
AZ 1.5
DC 68.3
DCX 80
DCON 27
DCSFMS 76
DAH 13
DCCB 19
RMPX 1.1
L8 7
LF 50
CBDP 23
KWW 12.4
APMX 2
GAMP +8°
GAMF -5°
WT 1.2
Peripheral effective cutting edge count: ZEFP 6
