Face Cutter >AJX_MM >AJX14-160B06R

Face Cutter

AJX14
（MULTI FUNCTIONAL MILLING）

AJX14-160B06R

Product Information

  • High rigidity due to double clamp structure.
  • Suitable for high feed cutting.
  • Special insert design with the use of 3 cutting edges.
  • Standardization of coolant holes.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
AZ 2
DC 148.2
DCX 160
DCON 40
DCSFMS 100
DCCB 56
RMPX 0.5
L8 9
LF 63
CBDP 40
KWW 16.4
APMX 2
GAMP +8°
GAMF -5°
WT 5
Peripheral effective cutting edge count: ZEFP 6

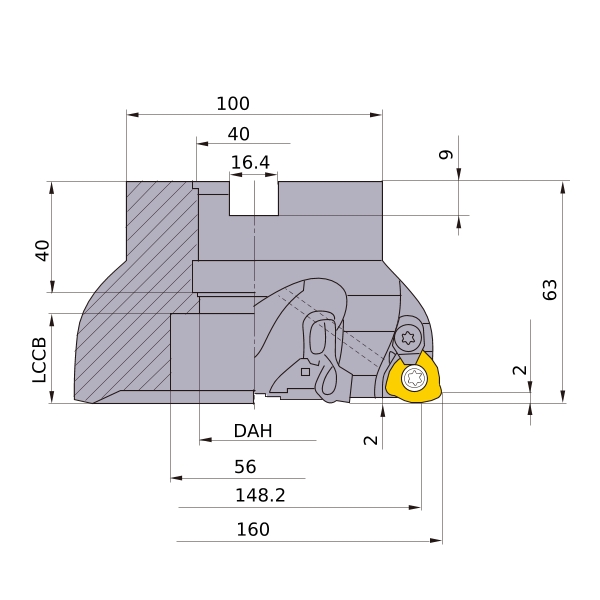

2D Model (DXF)
CAD data name Download
AJX14-160B06R
CAD
