Face Cutter >AHX640W_MM >AHX640W-080A08R

Face Cutter

AHX640W_MM
（HIGH FEED CUTTING FOR CAST IRON）

AHX640W-080A08R

Product Information

  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

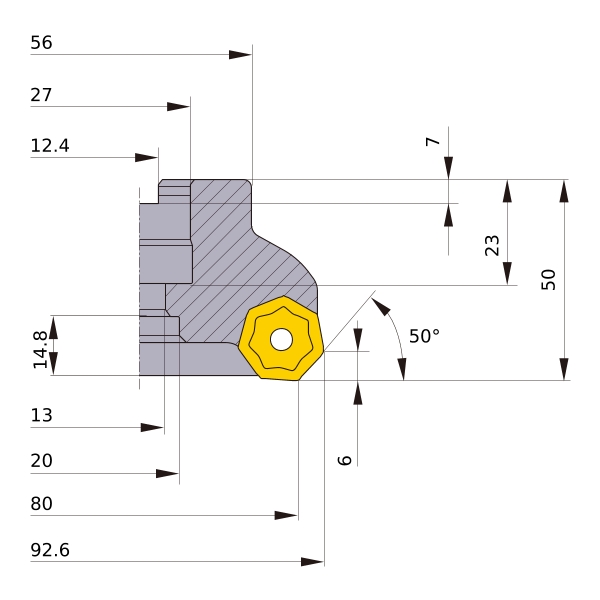

DC 80
DCX 92.6
DCON 27
DCSFMS 56
DAH 13
DCCB 20
KAPR 50°
L8 7
LF 50
CBDP 23
LCCB 14.8
KWW 12.4
APMX 6
GAMP -6°
GAMF -4°
WT 1.5
Peripheral effective cutting edge count: ZEFP 8
