Face Cutter >AXD7000_MM >AXD7000-050A03RB

Face Cutter

AXD7000_MM
（For Aluminium Alloy）

AXD7000-050A03RB

Product Information

  • Multi functional milling.
  • High spindle speeds possible.
  • Low resistance inserts.
  • Excellent wall accuracy.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

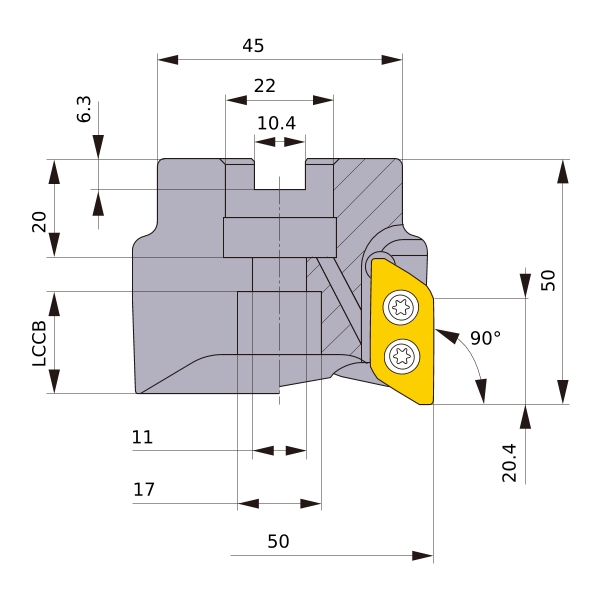

DC 50
DCON 22
DCSFMS 45
DAH 11
DCCB 17
KAPR 90°
RMPX 8
L8 6.3
LF 50
CBDP 20
KWW 10.4
APMX 20.4
GAMP +11°
GAMF +26°
WT 0.4
Peripheral effective cutting edge count: ZEFP 3
RPMX 30000
