Face Cutter >AXD7000_MM >AXD7000-125B06RB

Face Cutter

AXD7000_MM
（For Aluminium Alloy）

AXD7000-125B06RB

Product Information

  • Multi functional milling.
  • High spindle speeds possible.
  • Low resistance inserts.
  • Excellent wall accuracy.

The actual product may differ from the displayed image.

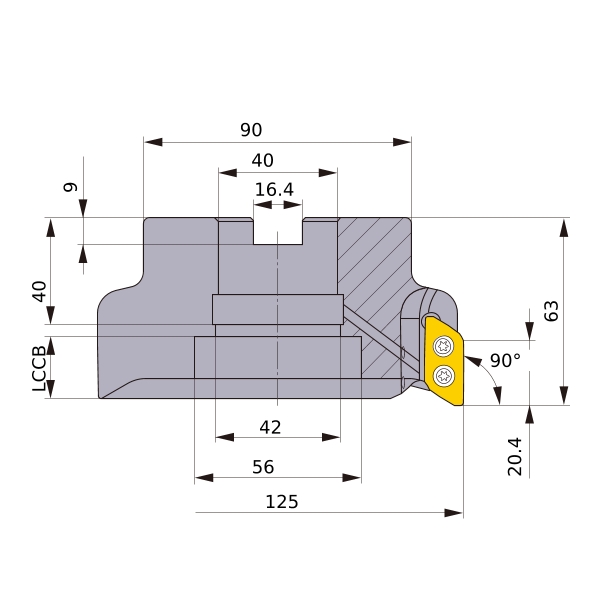

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DC 125
DCON 40
DCSFMS 90
DAH 42
DCCB 56
KAPR 90°
RMPX 2
L8 9
LF 63
CBDP 40
KWW 16.4
APMX 20.4
GAMP +11°
GAMF +29°
WT 2.7
Peripheral effective cutting edge count: ZEFP 6
RPMX 16000
