Face Cutter >AHX640S_MM >AHX640S-160C10NR

Face Cutter

AHX640S_MM
（GENERAL CUTTING）

AHX640S-160C10NR

Product Information

  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.

The actual product may differ from the displayed image.

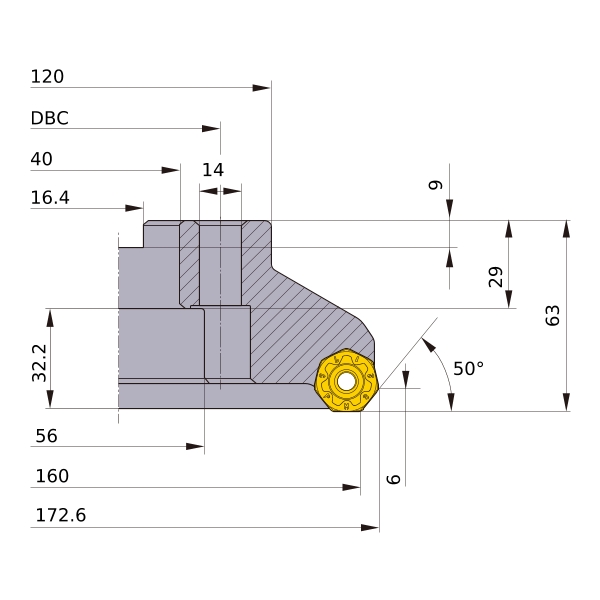

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DC 160
DCX 172.6
DCON 40
DCSFMS 120
DAH 14
DCCB 56
KAPR 50°
L8 9
LF 63
CBDP 29
LCCB 32.2
KWW 16.4
APMX 6
GAMP -6°
GAMF -5°
WT 5.2
Peripheral effective cutting edge count: ZEFP 10
