Face Cutter >WSX445_MM >WSX445-080A04AR

Face Cutter

WSX445_MM
（GENERAL CUTTING）

WSX445-080A04AR

Product Information

  • Double sided Z Geometry.
  • Smooth chip discharge.

The actual product may differ from the displayed image.

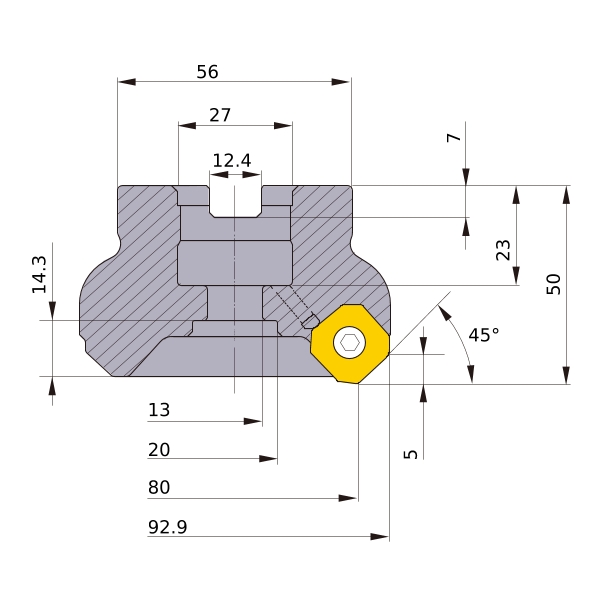

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DC 80
DCX 92.9
DCON 27
DCSFMS 56
DAH 13
DCCB 20
KAPR 45°
L8 7
LF 50
CBDP 23
LCCB 14.3
KWW 12.4
APMX 5
GAMP -6°
GAMF -10°
WT 1.26
Peripheral effective cutting edge count: ZEFP 4
