Face Cutter >WSX445_MM >WSX445-050A04AR

Face Cutter

WSX445_MM
（GENERAL CUTTING）

WSX445-050A04AR

Product Information

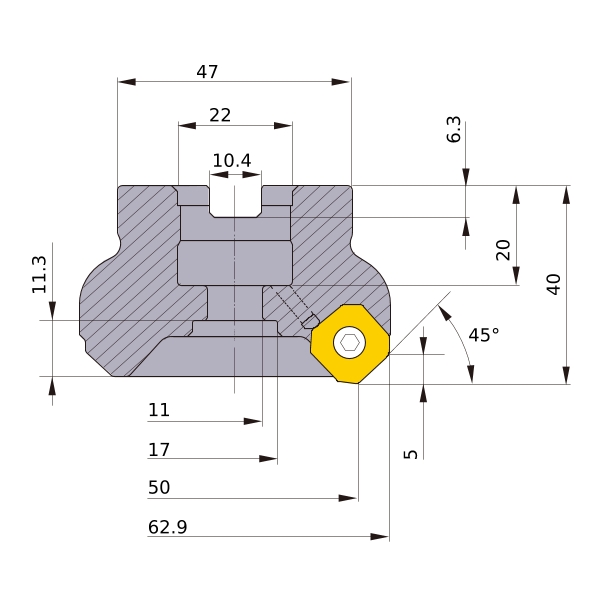

  • Double sided Z Geometry.
  • Smooth chip discharge.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DC 50
DCX 62.9
DCON 22
DCSFMS 47
DAH 11
DCCB 17
KAPR 45°
L8 6.3
LF 40
CBDP 20
LCCB 11.3
KWW 10.4
APMX 5
GAMP -6°
GAMF -10°
WT 0.44
Peripheral effective cutting edge count: ZEFP 4
