Face Cutter >WSX445_MM >WSX445-160C16NR

Face Cutter

WSX445_MM
（GENERAL CUTTING）

WSX445-160C16NR

Product Information

  • Double sided Z Geometry.
  • Smooth chip discharge.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

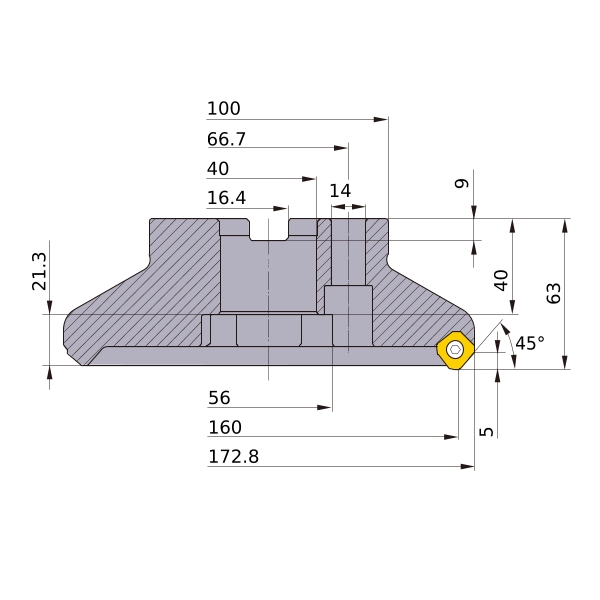

DC 160
DCX 172.8
DCON 40
DCSFMS 100
DAH 14
DCCB 56
KAPR 45°
L8 9
LF 63
CBDP 40
LCCB 21.3
KWW 16.4
APMX 5
GAMP -6°
GAMF -12°
WT 4.64
DBC 66.7
Peripheral effective cutting edge count: ZEFP 16
