Face Cutter >ARP_MM >ARP6P-040A04AR

Face Cutter

ARP_MM
（Round insert cutter for difficult-to-cut materials）

ARP6P-040A04AR

Product Information

  • High runout accuracy when indexing inserts.
  • Strong clamping system
  • Standardized stock of extra fine pitch.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

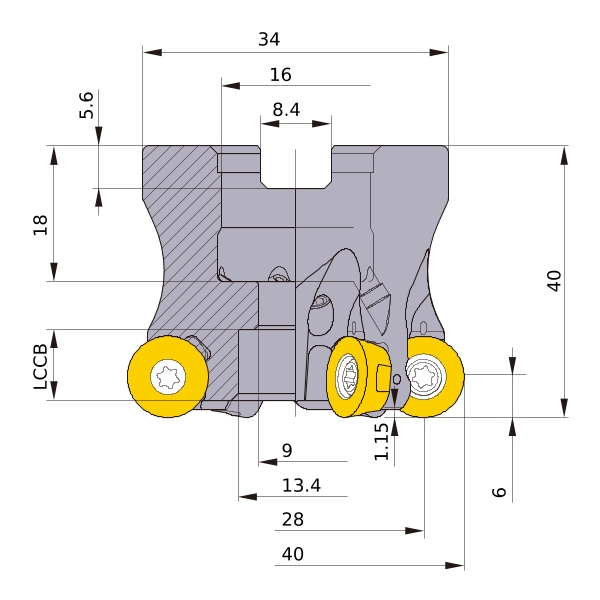

A1 2
AZ 1.15
DC 28
DCX 40
DCON 16
DCSFMS 34
DAH 9
DCCB 13.4
RMPX 2.7°
L8 5.6
LF 40
CBDP 18
KWW 8.4
APMX 6
GAMP +4°
GAMF -6°
WT 0.15
R 6
Peripheral effective cutting edge count: ZEFP 4
