Face Cutter >ARP_MM >ARP6P-063A07AR

Face Cutter

ARP_MM
（Round insert cutter for difficult-to-cut materials）

ARP6P-063A07AR

Product Information

  • High runout accuracy when indexing inserts.
  • Strong clamping system
  • Standardized stock of extra fine pitch.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

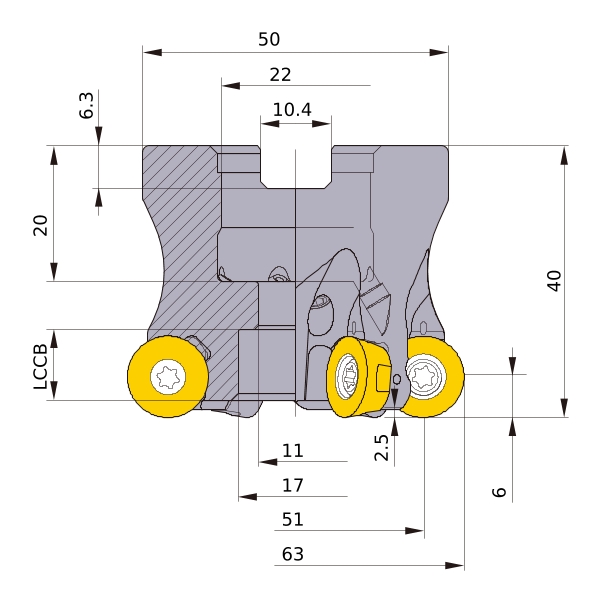

A1 2.5
AZ 2.5
DC 51
DCX 63
DCON 22
DCSFMS 50
DAH 11
DCCB 17
RMPX 3.1°
L8 6.3
LF 40
CBDP 20
KWW 10.4
APMX 6
GAMP +4°
GAMF -6°
WT 0.44
R 6
Peripheral effective cutting edge count: ZEFP 7
2D Model (DXF)
CAD data name Download
ARP6P-063A07AR
