Face Cutter >ARP_MM >ARP5P-052A06AR

Face Cutter

ARP_MM
（Round insert cutter for difficult-to-cut materials）

ARP5P-052A06AR

Product Information

  • High runout accuracy when indexing inserts.
  • Strong clamping system
  • Standardized stock of extra fine pitch.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
A1 2.5
AZ 2
DC 41.9
DCX 52
DCON 22
DCSFMS 45
DAH 11
DCCB 17
RMPX 3.0°
L8 6.3
LF 40
CBDP 20
KWW 10.4
APMX 5
GAMP +4°
GAMF -6°
WT 0.29
R 5
Peripheral effective cutting edge count: ZEFP 6

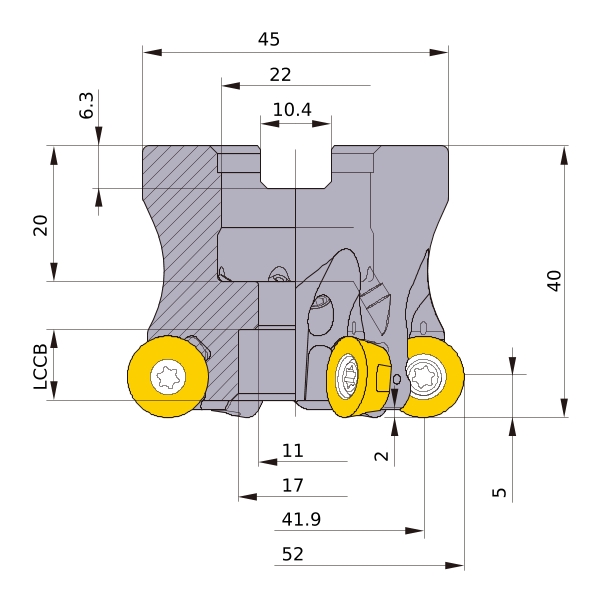

2D Model (DXF)
CAD data name Download
ARP5P-052A06AR
CAD
