Face Cutter >AHX440S_MM >AHX440S-125B14AR

Face Cutter

AHX440S_MM
（GENERAL CUTTING）

AHX440S-125B14AR

Product Information

  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

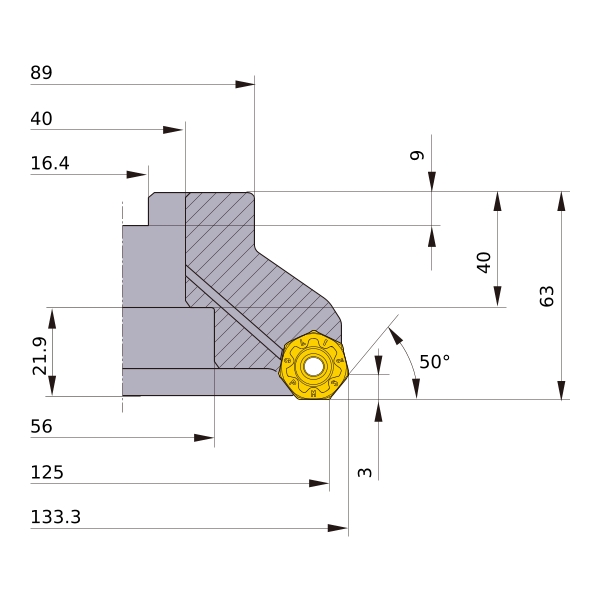

DC 125
DCX 133.3
DCON 40
DCSFMS 89
DCCB 56
KAPR 50°
L8 9
LF 63
CBDP 40
LCCB 21.9
KWW 16.4
APMX 3
GAMP -6°
GAMF -10°
WT 2.9
Peripheral effective cutting edge count: ZEFP 14
