Face Cutter >FMAX_MM >FMAX-125B24R

Face Cutter

FMAX_MM
（HIGH FEED MILLING CUTTER FOR FINISHING）

FMAX-125B24R

Product Information

  • Internal coolant and a special chip breaker wall (Body protector) provides ideal chip discharge performance.
  • Light Weight, High Rigidity Body
  • High precision, Easy setting

The actual product may differ from the displayed image.

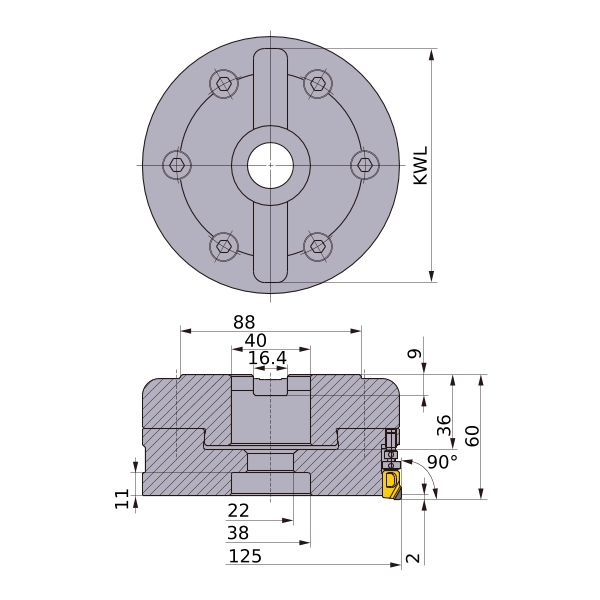

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DC 125
DCON 40
DCSFMS 88
DAH 22
DCCB 38
KAPR 90°
L8 9
LF 60
CBDP 36
LCCB 11
KWW 16.4
APMX 2
GAMP +5°
GAMF 0°
WT 3.26
Peripheral effective cutting edge count: ZEFP 24
RPMX 19600
