Face Cutter >FMAX_MM >FMAX-050A04R

Face Cutter

FMAX_MM
（HIGH FEED MILLING CUTTER FOR FINISHING）

FMAX-050A04R

Product Information

  • Internal coolant and a special chip breaker wall (Body protector) provides ideal chip discharge performance.
  • Light Weight, High Rigidity Body
  • High precision, Easy setting

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

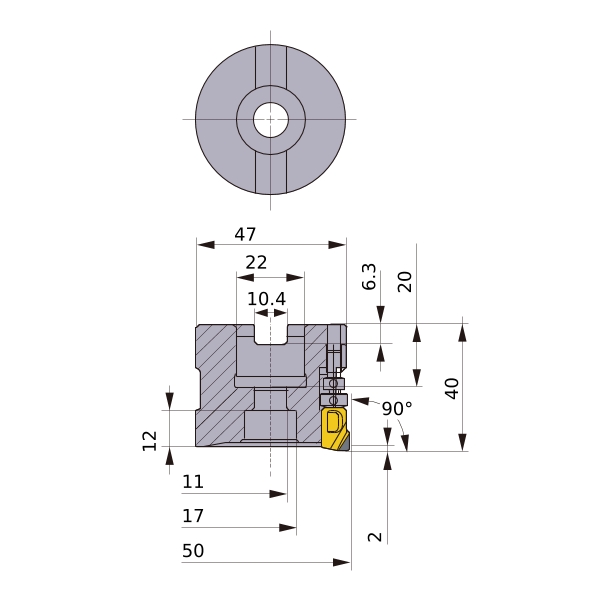

DC 50
DCON 22
DCSFMS 47
DAH 11
DCCB 17
KAPR 90°
L8 6.3
LF 40
CBDP 20
LCCB 12
KWW 10.4
APMX 2
GAMP +5°
GAMF 0°
WT 0.38
Peripheral effective cutting edge count: ZEFP 4
RPMX 30000
2D Model (DXF)
CAD data name Download
FMAX-050A04R
CAD
