Face Cutter >VPX200_MM >VPX200-040A06AR

Face Cutter

VPX200_MM
（Multi-functional Cutter for High Efficiency Machining）

VPX200-040A06AR

Product Information

  • Arranging the inserts tangentially secures high holder rigidity.
  • Different types of milling cover a wide variety of situations.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock

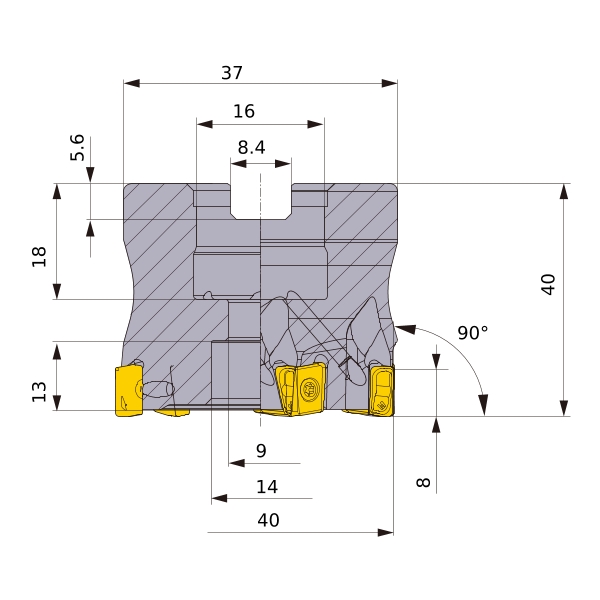

Unit of Length M
DC 40
DCON 16
DCSFMS 37
DAH 9
DCCB 14
KAPR 90°
RMPX 0.54°
L8 5.6
LF 40
CBDP 18
LCCB 13
KWW 8.4
APMX 8
GAMP -6°
GAMF -25°
WT 0.22
Cutting item count: CICT 6
Peripheral effective cutting edge count: ZEFP 6
Face effective cutting edge count: ZEFF 6
Effective Cutting Edge 6
RPMX 22000
