Face Cutter >WJX14_MM >WJX14-063A04AR

Face Cutter

WJX14_MM
（Double-sided Insert Type High Feed Radius Milling Cutter）

WJX14-063A04AR

Product Information

  • Double sided Z Geometry.
  • Smooth chip discharge.
  • Excellent sharpness enables reduced cutting noise and provides long tool life
  • Suitable for high feed machining.
  • With through coolant holes.
  • Special insert design with 6 cutting edges.

The actual product may differ from the displayed image.

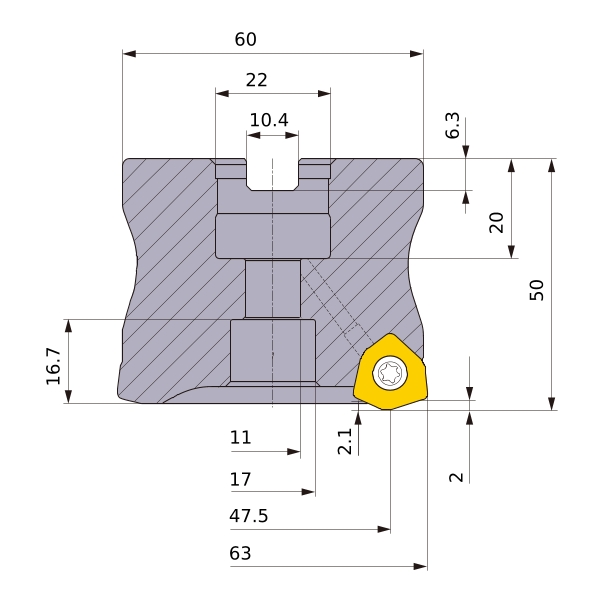

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
AZ 2.1
DC 47.5
DCX 63
DCON 22
DCSFMS 60
DAH 11
DCCB 17
RMPX 3°
L8 6.3
LF 50
CBDP 20
LCCB 16.7
KWW 10.4
APMX 2
GAMP -6°
GAMF -10°
WT 0.7
Cutting item count: CICT 4
Peripheral effective cutting edge count: ZEFP 4
RPMX 18200
