Face Cutter

FMAX_COMPACT
（HIGH FEED MILLING CUTTER FOR FINISHING）

FMAXR10010CLW

Product Information

  • For Compact and Smaller Machining Centers
  • Internal coolant and a special chip breaker wall (Body protector) provides ideal chip discharge performance.
  • Light Weight, High Rigidity Body
  • High precision, Easy setting

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

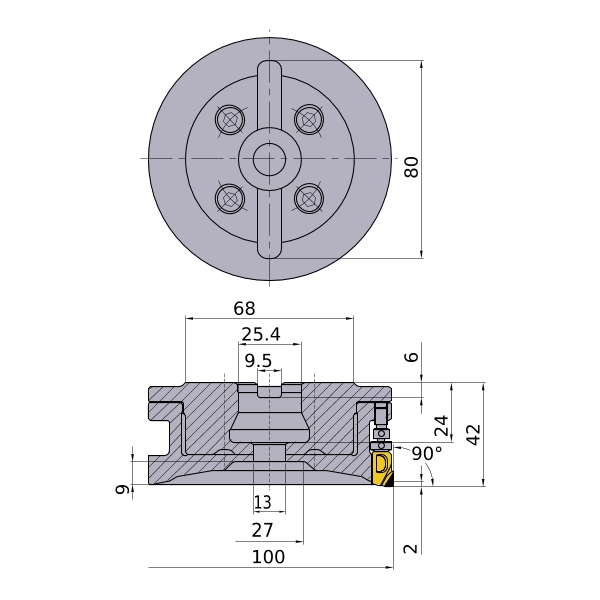

DC 100
DCON 25.4
DCSFMS 68
DAH 13
DCCB 27
KAPR 90°
L8 6
LF 42
CBDP 24
LCCB 9
KWW 9.5
APMX 2
KWL 80
GAMP +5°
GAMF 0°
WT 1.06
Peripheral effective cutting edge count: ZEFP 10
RPMX 22000
2D Model (DXF)
CAD data name Download
FMAXR10010CLW
CAD
