Face Cutter >WWX400_MM >WWX400-200C16NR

Face Cutter

WWX400_MM
（90˚ FACE MILLING CUTTER）

WWX400-200C16NR

Product Information

  • The indexable inserts with 6 usable cutting edges offer lower cost per cutting edge
  • Innovative geometry generates low cutting forces.
  • reliable machining
  • The milling cutter with cutting diameter DC = 50 mm has a built-in set bolt.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

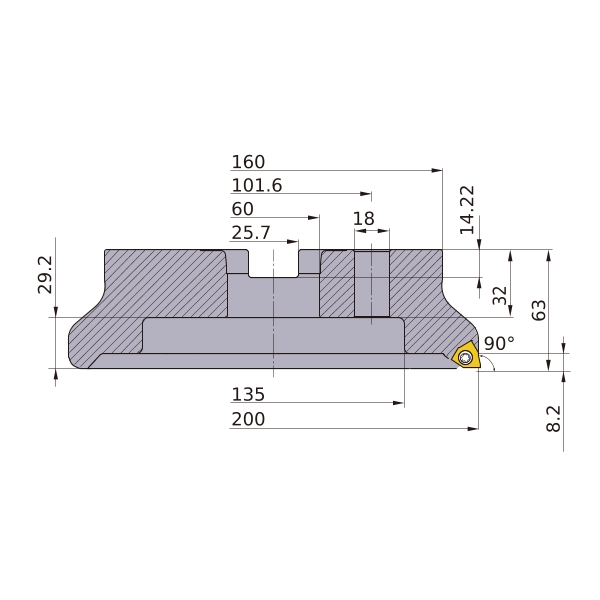

DC 200
DCON 60
DCSFMS 160
DAH 18
DCCB 135
KAPR 90°
L8 14.22
LF 63
CBDP 32
LCCB 29.2
KWW 25.7
APMX 8.2
GAMP -6°
GAMF -8.5°
WT 6.6
DBC 101.6
Cutting item count: CICT 16
Peripheral effective cutting edge count: ZEFP 16
RPMX 7300
