Face Cutter >WJX09_MM >WJX09-066X07AR

Face Cutter

WJX09_MM
（Double-sided Insert Type High Feed Radius Milling Cutter）

WJX09-066X07AR

Product Information

  • Double sided Z Geometry.
  • Smooth chip discharge.
  • Excellent sharpness enables reduced cutting noise and provides long tool life

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

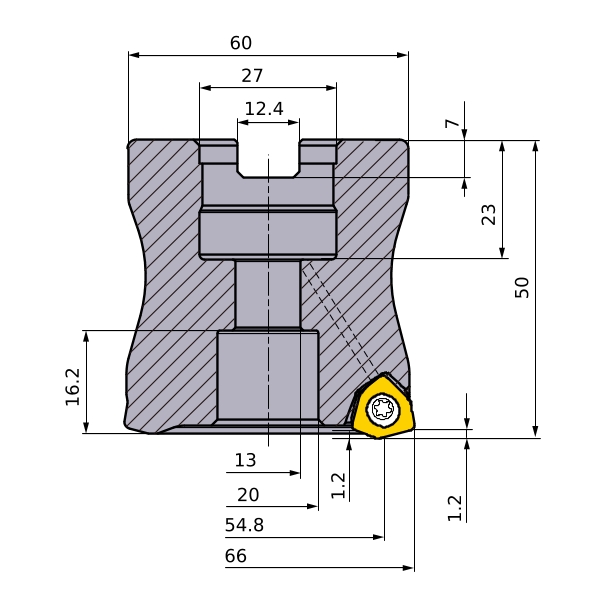

AZ 1.2
DC 54.8
DCX 66
DCON 27
DCSFMS 60
DAH 13
DCCB 20
RMPX 1.4°
L8 7
LF 50
CBDP 23
LCCB 16.2
KWW 12.4
APMX 1.2
GAMP -6°
GAMF -10°
WT 0.8
Cutting item count: CICT 7
Peripheral effective cutting edge count: ZEFP 7
