Face Cutter >WWX200_MM >WWX200-100B08AR

Face Cutter

WWX200_MM
（90˚ FACE MILLING CUTTER）

WWX200-100B08AR

Product Information

  • The indexable inserts with 6 usable cutting edges offer lower cost per cutting edge
  • Innovative geometry generates low cutting forces.
  • reliable machining

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

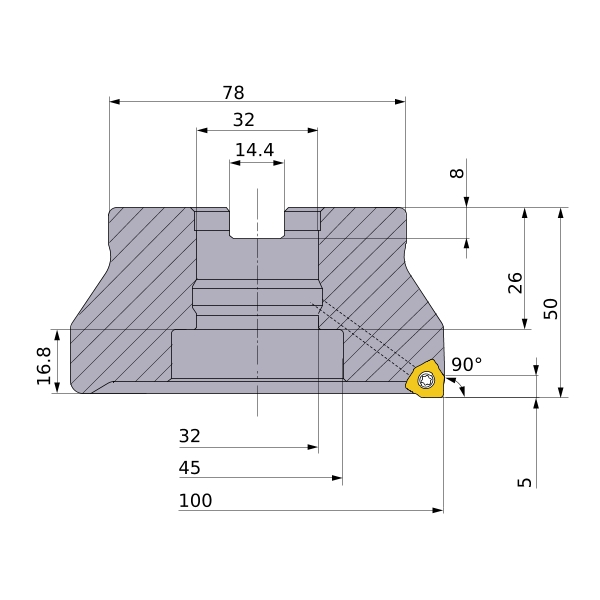

DC 100
DCON 32
DCSFMS 78
DAH 32
DCCB 45
KAPR 90°
L8 8
LF 50
CBDP 26
LCCB 16.8
KWW 14.4
APMX 5
GAMP -6°
GAMF -12°
WT 1.7
Cutting item count: CICT 8
Peripheral effective cutting edge count: ZEFP 8
RPMX 11700
2D Model (DXF)
CAD data name Download
WWX200-100B08AR
CAD
