Face Cutter >WWX200_MM >WWX200-125B07AR

Face Cutter

WWX200_MM
（90˚ FACE MILLING CUTTER）

WWX200-125B07AR

Product Information

  • The indexable inserts with 6 usable cutting edges offer lower cost per cutting edge
  • Innovative geometry generates low cutting forces.
  • reliable machining

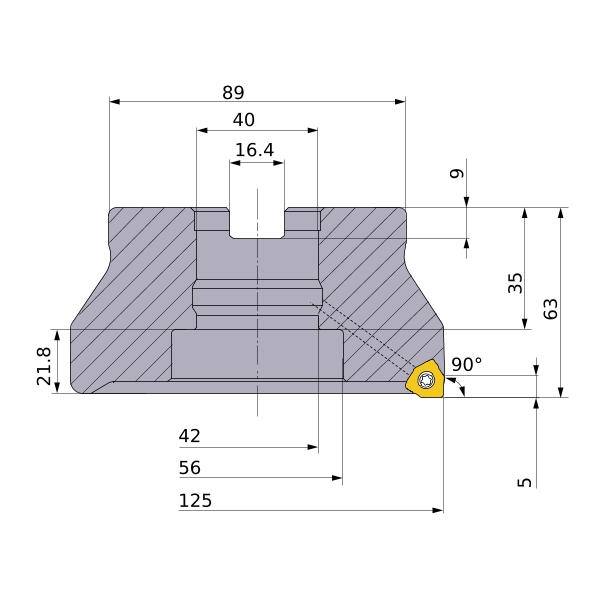

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DC 125
DCON 40
DCSFMS 89
DAH 42
DCCB 56
KAPR 90°
L8 9
LF 63
CBDP 35
LCCB 21.8
KWW 16.4
APMX 5
GAMP -6°
GAMF -12°
WT 3.1
Cutting item count: CICT 7
Peripheral effective cutting edge count: ZEFP 7
RPMX 10100
