Grooving Others >MGH >MGHL2020K3315

Grooving Others

MGH
（MG Holder）

MGHL2020K3315

Product Information

  • Clamp-on type
  • Positive insert suffers from negligible chattering and thus produces good finished surface.
  • Groove width 1.25 - 6.0mm

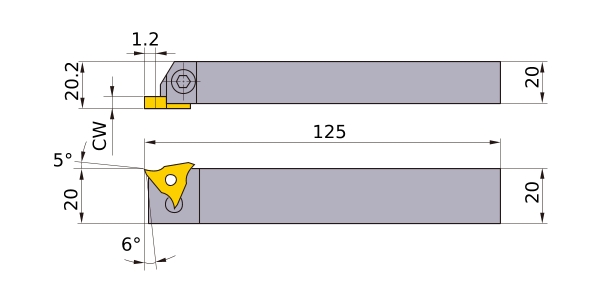

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M
B 20
LF 125
CDX 1.2
WF 20.2
H 20
HF 20
Peripheral effective cutting edge count: ZEFP 1
2D Model (DXF)
CAD data name Download
MGHL2020K3315
CAD
