GWB26NA2-G36

Product Information

  • Simple insert clamping method offering high rigidity.
  • Possible to use with both external or through coolant.
  • Groove Depth CW 2.0―5.0mm

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand N
Stock
Unit of Length M

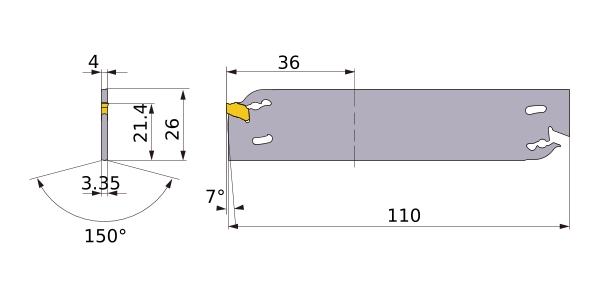

CUTDIA 72
B 3.35
LF 110
HF 21.4
CW 4
LTA 36
HTB 26
Peripheral effective cutting edge count: ZEFP 1
