Grooving Others >GW >GWB32NA2-G60

Grooving Others

GW
（GW Blade）

GWB32NA2-G60

Product Information

  • Simple insert clamping method offering high rigidity.
  • Possible to use with both external or through coolant.
  • Groove Depth CW 2.0―5.0mm

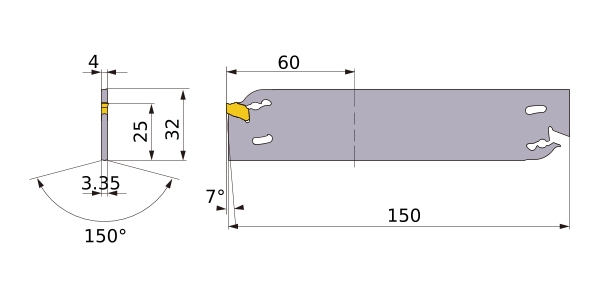

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand N
Stock
Unit of Length M
CUTDIA 120
B 3.35
LF 150
HF 25
CW 4
LTA 60
HTB 32
Peripheral effective cutting edge count: ZEFP 1
