Grooving Others >GW >GWB32NA2-D60-C
GW
(GW Blade)
The actual product may differ from the displayed image.

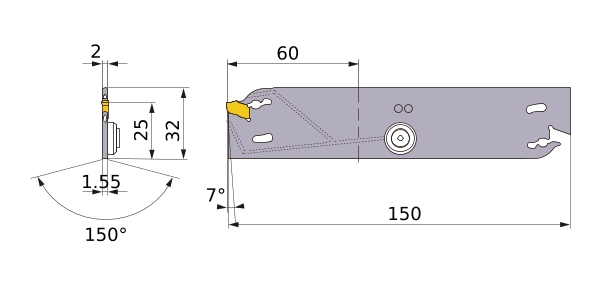

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Hand | N |
Stock | ![]() |
Unit of Length | M |
CUTDIA | 120 |
B | 1.55 |
LF | 150 |
HF | 25 |
CW | 2 |
LTA | 60 |
HTB | 32 |
Peripheral effective cutting edge count: ZEFP | 1 |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
Recommended Cutting Condition
Turning Inserts
Spare Parts
