Grooving Others >GWS00 >GWSR2525M00-E42

Grooving Others

GWS00
（External for Swiss-type Automatic Lathes）

GWSR2525M00-E42

Product Information

  • Highly Reliable Insert Clamping
  • High-Rigidity Holder

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock

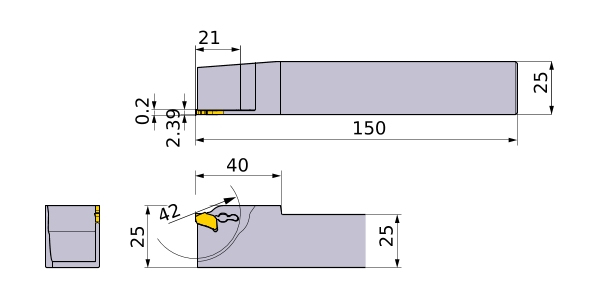

Unit of Length M
CUTDIA 42
B 25
LF 150
LH 40
CDX 21
WF 0.2
H 25
HF 25
CW 2.39
Peripheral effective cutting edge count: ZEFP 1
