Grooving Others >GWS00 >GWSR2020K00-F51

Grooving Others

GWS00
（External for Swiss-type Automatic Lathes）

GWSR2020K00-F51

Product Information

  • Highly Reliable Insert Clamping
  • High-Rigidity Holder

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

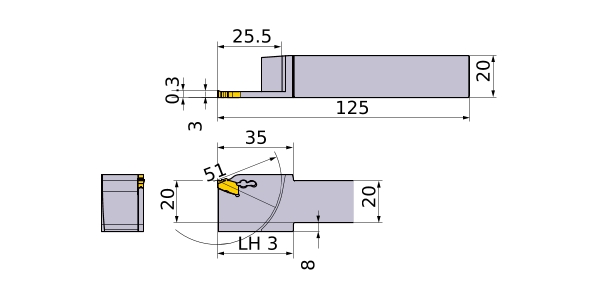

CUTDIA 51
B 20
LF 125
LH 35
CDX 25.5
WF 0.3
H 20
HF 20
HBH 8
CW 3
Peripheral effective cutting edge count: ZEFP 1
2D Model (DXF)
CAD data name Download
GWSR2020K00-F51
