Grooving GY Series

GYH90D
（90° type holder）

5G1R4H12

Product Information

  • Highly reliable insert clamping
  • High accuracy, long life inserts for a wide variety of machining applications
  • Innovative Tri Lock System

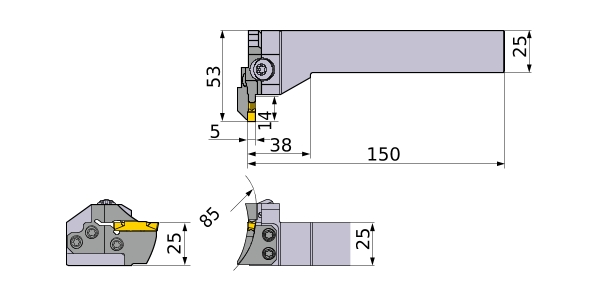

  • Dimensions shown are when the gauge insert is used.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DAXN 60
CUTDIA 85
B 25
LF 150
LH 38
CDX 14
WF 53
H 25
HF 25
CW 5
Peripheral effective cutting edge count: ZEFP 1
Modular Holder GYHR2525M90-M25L
Modular Blade GYM25LD-H14-060
2D Model (DXF)
CAD data name Download
5G1R4H12
CAD
