Grooving GY Series

GYH00D
（00° type holder）

4G1R4F12

Product Information

  • Highly reliable insert clamping
  • High accuracy, long life inserts for a wide variety of machining applications
  • Innovative Tri Lock System
  • Dimensions shown are when the gauge insert is used.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

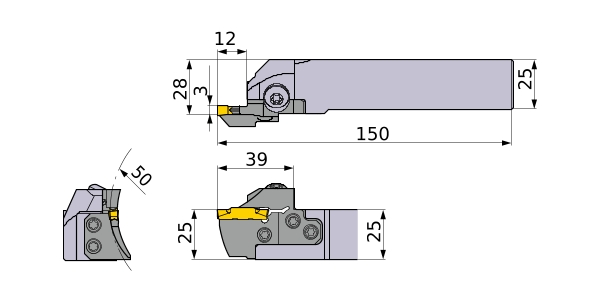

DAXN 40
CUTDIA 50
B 25
L4 57
LF 150
LH 39
CDX 12
WF 28
H 25
HF 25
CW 3
Peripheral effective cutting edge count: ZEFP 1
Modular Holder GYHR2525M00-M25R
Modular Blade GYM25RD-F12-040
2D Model (DXF)
CAD data name Download
4G1R4F12
