HSK-T Tools >DCLN_EX2 >H63TH-DCLNL-L12-3

HSK-T Tools

DCLN_EX2
（DOUBLE CLAMP type）

H63TH-DCLNL-L12-3

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M

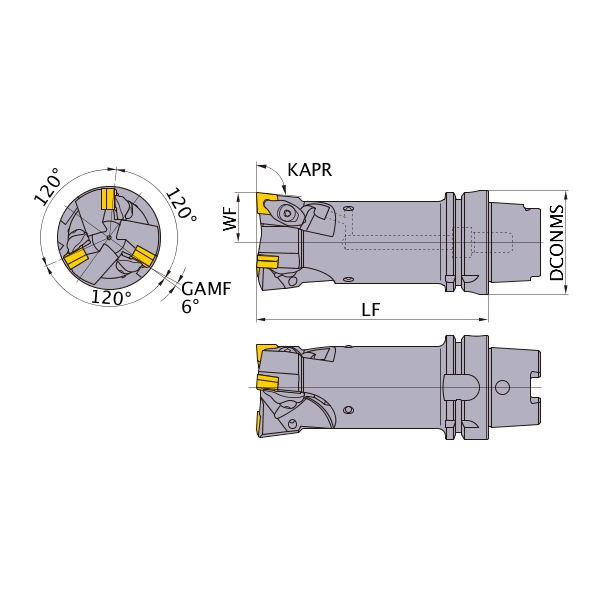

DCONMS 63
KAPR 95°
LF 140
WF 30
WT 2.2
Peripheral effective cutting edge count: ZEFP 1
2D Model (DXF)
CAD data name Download
H63TH-DCLNL-L12-3
